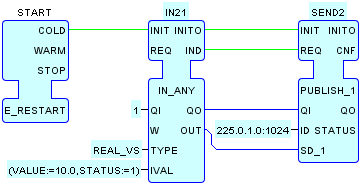

The SEND_REAL_VS/RCV_REAL_VS frames are part of the CODEC_TEST2 system configuration. They utilize instances of IN_ANY and OUT_ANY for input and output of transmitted data, respectively. This data is of the structured data type REAL_VS.

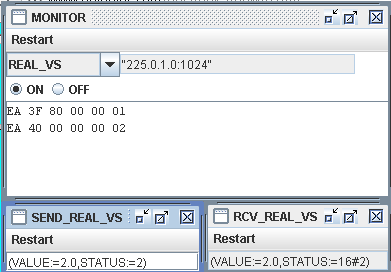

In this example, two successive values of REAL_VS type have been transmitted with an ASN.1 tag of EA hexadecimal. The first value transmitted was (VALUE:=1.0,STATUS:=1) and the second value was (VALUE:=2.0,STATUS:=2) as shown.
