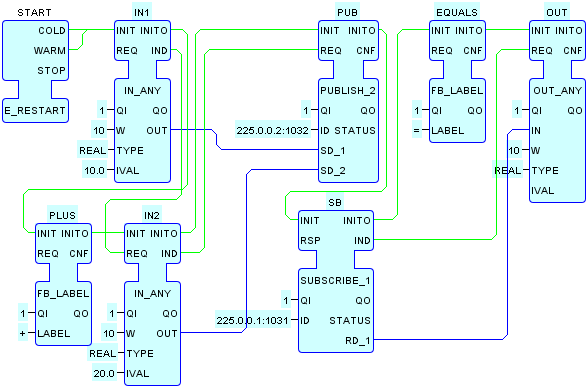

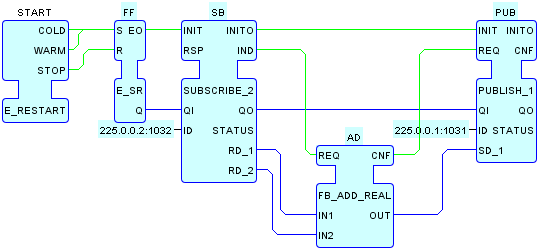

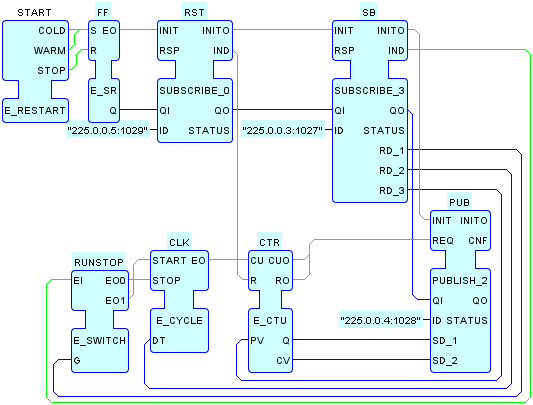

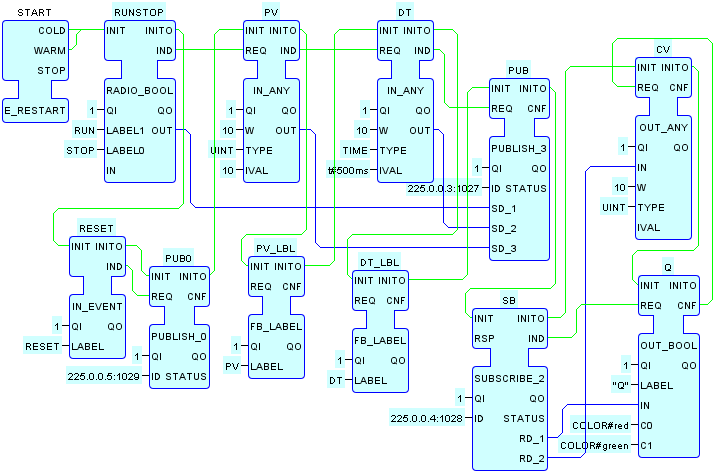

This system configuration illustrates the testing of two resources in a remote device named DEV1 . The test panel shown at left is located in the local device instance named DEV_TESTER. The local resource DEV_TESTER.RES1 provides the HMI for testing of the FB_ADD_REAL instance AD in the remote resource DEV1.RES1, while the local resource DEV_TESTER.RES2 provides the HMI for testing of the E_CTU instance CTR in the remote resource DEV1.RES2 .

See Annex B.2 of the Compliance Profile for a listing of the request/response transactions resulting from launching the remote DEV1 device , followed by launching the system configuration.
